Adjustable Steel Prop
Adjustable Steel Prop is a telescopic support system designed to provide temporary vertical support for slabs, beams, formwork, and construction structures during casting and renovation works. Its adjustable design allows quick and precise height adjustment, ensuring stable load support across a wide range of construction applications.
Key Features:
- Adjustable height for versatile site applications
- Provides temporary support for slabs, beams, and formwork
- Telescopic design for quick and precise adjustment
- High-strength steel construction for reliable load-bearing performance
- Easy to install, adjust, and dismantle
- Suitable for construction, renovation, and shoring applications
Steel Pipe Support Specification | ||||||
| Height | Permissible Load | |||||
| Model No | Outer tube (m) | Inner tube (m) | Min (m) | Max (m) | Closed (kg) | Extended (kg) |
| V-1 | 1.5 | 1.8 | 1.8 | 3.3 | 2,200 | 1,700 |
| V-2 | 1.5 | 2.0 | 2.0 | 3.5 | 2,000 | 1,500 |
| V-3 | 1.5 | 2.4 | 2.4 | 3.9 | 1,900 | 1,300 |
| V-4 | 1.5 | 2.7 | 2.7 | 4.2 | 1,800 | 1,200 |

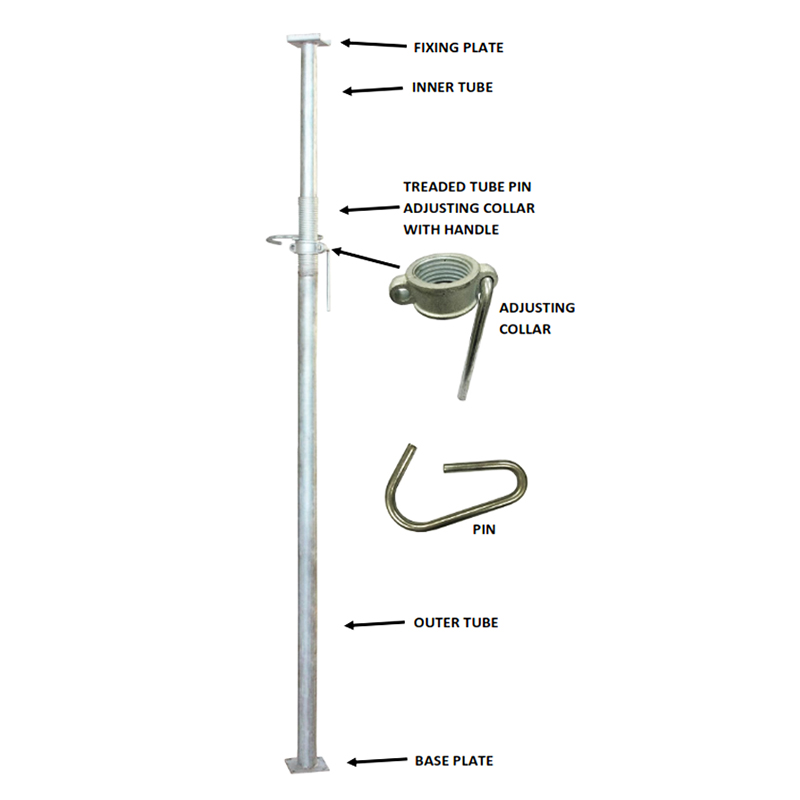

1. OUTER TUBE: New STK - 500 carbon steel tubes as material for structural purpose. Dimension: Φ60.5 x 2.4mm
2. INNER TUBE: New STK - 500 carbon steel tubes as material for structural purpose. Dimension: Φ48.6 x 2.4mm
3. BASE PLATE: STK - 410 steel plate its 6mm thickness and outer tube by firm welding.
4. SCREW: New JIS G 3452 grade threaded pipe of Ø 60.5 x 3.2mm thickness. It is welded at the outer tube and has a slot hole which the pin can go through it.
5. ADJUSTING COLLAR & HANDLE: New STK - 41 carbon steel tubes and a bracket for jointing between the handle and the collar.
Adjustable Steel Prop is a telescopic support system designed to provide temporary vertical support for slabs, beams, formwork, and construction structures during casting and renovation works. Its adjustable design allows quick and precise height adjustment, ensuring stable load support across a wide range of construction applications.
Key Features:
- Adjustable height for versatile site applications
- Provides temporary support for slabs, beams, and formwork
- Telescopic design for quick and precise adjustment
- High-strength steel construction for reliable load-bearing performance
- Easy to install, adjust, and dismantle
- Suitable for construction, renovation, and shoring applications
Steel Pipe Support Specification | ||||||
| Height | Permissible Load | |||||
| Model No | Outer tube (m) | Inner tube (m) | Min (m) | Max (m) | Closed (kg) | Extended (kg) |
| V-1 | 1.5 | 1.8 | 1.8 | 3.3 | 2,200 | 1,700 |
| V-2 | 1.5 | 2.0 | 2.0 | 3.5 | 2,000 | 1,500 |
| V-3 | 1.5 | 2.4 | 2.4 | 3.9 | 1,900 | 1,300 |
| V-4 | 1.5 | 2.7 | 2.7 | 4.2 | 1,800 | 1,200 |
1. OUTER TUBE: New STK - 500 carbon steel tubes as material for structural purpose. Dimension: Φ60.5 x 2.4mm
2. INNER TUBE: New STK - 500 carbon steel tubes as material for structural purpose. Dimension: Φ48.6 x 2.4mm
3. BASE PLATE: STK - 410 steel plate its 6mm thickness and outer tube by firm welding.
4. SCREW: New JIS G 3452 grade threaded pipe of Ø 60.5 x 3.2mm thickness. It is welded at the outer tube and has a slot hole which the pin can go through it.
5. ADJUSTING COLLAR & HANDLE: New STK - 41 carbon steel tubes and a bracket for jointing between the handle and the collar.
