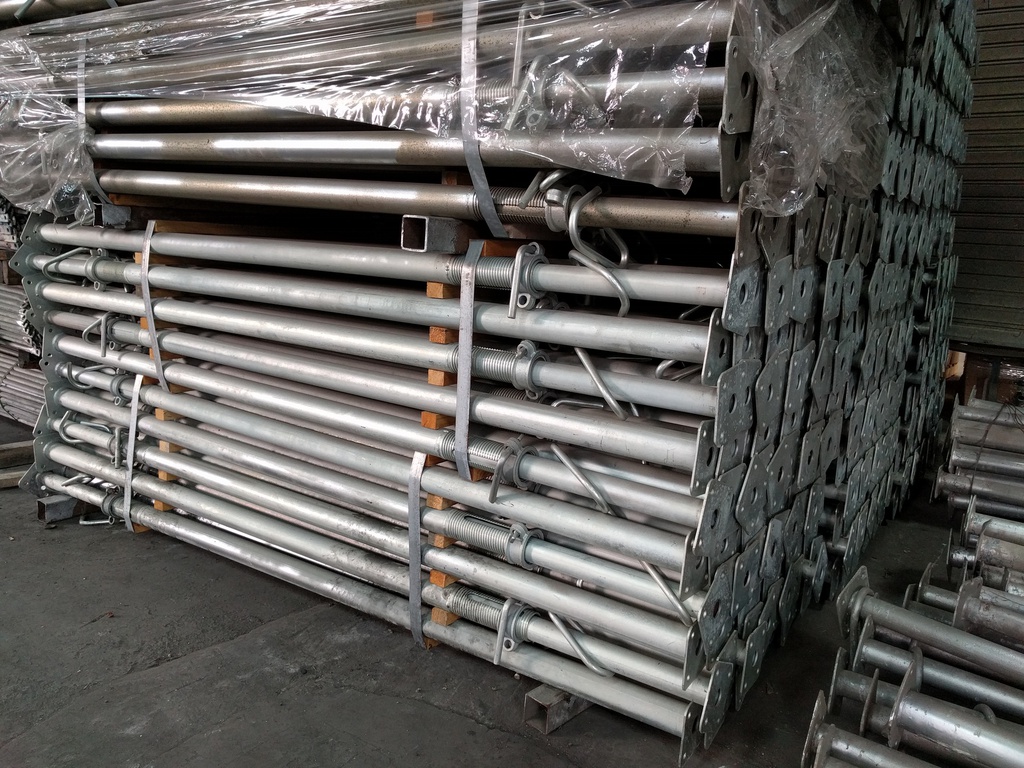

Steel Prop

Steel Pipe Support Specification

      Height Permissible Load
Model No Outer tube
(m)
Inner tube
(m)
Min
(m)
Max
(m)
Closed
(kg)
Extended
(kg)
V-1 1.5 1.8 1.8 3.3 2,200 1,700
V-2 1.5 2.0 2.0 3.5 2,000 1,500
V-3 1.5 2.4 2.4 3.9 1,900 1,300
V-4 1.5 2.7 2.7 4.2 1,800 1,200

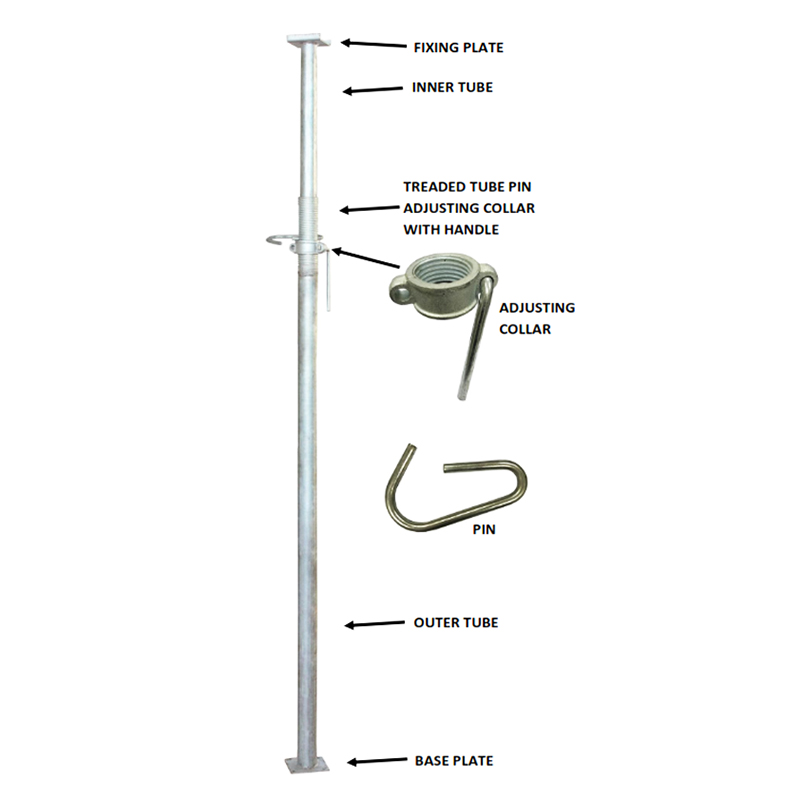

1. OUTER TUBE: New STK - 500 carbon steel tubes as material for structural purpose. Dimension: Φ60.5 x 2.3mm

2. INNER TUBE: New STK - 500 carbon steel tubes as material for structural purpose. Dimension: Φ48.6 x 2.3mm

3. BASE PLATE: STK - 410 steel plate its 6mm thickness and outer tube by firm welding.

4. SCREW: New JIS G 3452 grade threaded pipe of Ø 60.5 x 3.2mm thickness. It is welded at the outer tube and has a slot hole which the pin can go through it.

5. ADJUSTING COLLAR & HANDLE: New STK - 41 carbon steel tubes and a bracket for jointing between the handle and the collar.
